Key Feature:


4K HDMI Input
2 x 6G-SDI Outputs
Supports SD, HD, UHD 4K & DCI 4K Signals
Automatic Input Signal Detection
24-Bit, 48 kHz Audio
Analog & AES-EBU Digital Audio Inputs
Embeds Audio Into SDI Output
Settings via Mini Switches or Software
USB 2.0 Port for Firmware Updates
12V Universal Power Supply Included

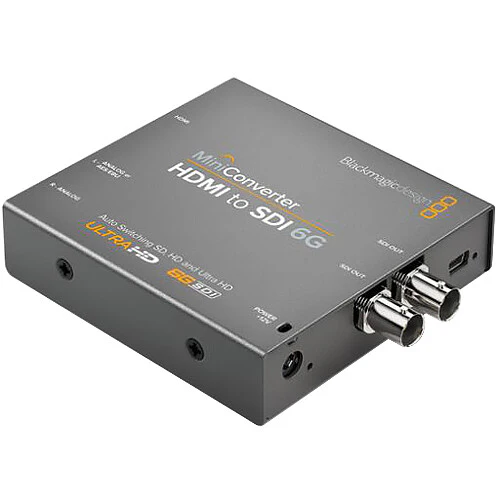

The Blackmagic Design HDMI to SDI 6G Mini Converter converts HDMI to SD, HD, 3G, or 6G-SDI in resolutions up to DCI 4K (4096 x 2160) at 24p and UHD 4K (3840 x 2160) up to 30p. This is useful for connecting consumer devices that output HDMI signals with professional SDI video equipment. With a compact form factor and easy-to-use controls, the Mini Converter is ideal for a variety of broadcast, post-production, and professional AV applications.

Using 4K HDMI and 6G-SDI technologies, the Mini Converter automatically detects the input video format and instantly changes between SD, HD, and UHD/DCI 4K formats. The two 6G-SDI outputs also support SD and HD-SDI signals for integration into existing workflows. Both 6G-SDI outputs send duplicate signals. Audio is embedded in the SDI output from either the HDMI input or from the two 1/4" input jacks which support four channels of AES/EBU digital audio or two channels of analog audio.
